Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: PHOTEL
  • Model Number: PT-80 1116
  • E1 number: 16
  • optical number: 2
  • Ethernet number: 4
  • RS232 port number: 1
  • NMS: support
  • LED alarm: support
  • size: 1U 19inch
  • E1 connector: BNC
  • ETH connector: RJ45
  • Fiber: SC and FC

Packaging & Delivery

Packaging Details according to the customer requirement
Delivery Time 3-7days
Product Description

PT-80 1116 PDH is a compact size, PTP and PTMP transmission equipment that easily bring the E1 and Ethernet services to customer premises or remote end office. It operates at 1.25Gbps transmission rate over the optical cable, with enough bandwidth to carry 16 x E1s, as well as 4 x 10/100/1000M switching Ethernet data. For further flexibility, these four Ethernet ports could be 4 electrical GE interfaces or 3 x electrical GE interfaces plus 1 x SFP gigabit optical ETH interface. It designs with 2 interface slots on the rear panel to adapt different E1 card module, so it can carry from 4 x E1 up to 16 x E1 due to customer requirement.

Optical network interface supports 1+1 auto protection and dual power supply design enhances the system reliability tremendously. 1Gbps bandwidth is dedicated and guaranty for the Ethernet data transport, and the switching Ethernet ports support VLAN and spanning tree. Two additional RS232 data ports are provided to fully utilize the transmission bandwidth. That can be used for carry the slow speed telemetry or any async. data. Order wire (EOW) interface is also provided for voice communication that is very useful during equipment installation.

In-band management is supported with RS232 and ETH NMS interface. It adopts 1U height standard 19" rack mountable case, and supports dual power 220AC and -48DC. PT80 1116 provides great amount of E1 and gigabit Ethernet data through the fiber network; it is the most cost effective solution for the last mile digital network access.

Main Features

1) Compact 1U height, 19" rack mountable casing for the last mile access;

2) 1.25Gbps transmission rate over the fiber optic, guaranty bandwidth for different data traffic;
3) Optical network interface supports 1+1 auto protection, or individual for 2 directions;
4) 2 interface slots for E1 card module; 4E1 and 8E1 card module is provided;
5) Provides maximum 16 x E1 interfaces, and 4 switching Ethernet ports;
6) 4 x 1000Base-T or 3 x 1000Base-T plus 1 x 1000Base-FX SFP/LC, defined by DIP switch;
7) Ethernet interface supports VLAN and spanning tree for broadcast storm protection;
8) Additional RS232 user port for slow speed data transport;
9) Order wire port is provided for voice communication;
10) Support firmware and software remote upgrade;
11) NMS provides alarm, performance, and monitor local /remote equipment status;
12) AC220V and DC-48V dual power supply is orderable.
Applications
Working in Ring Networking

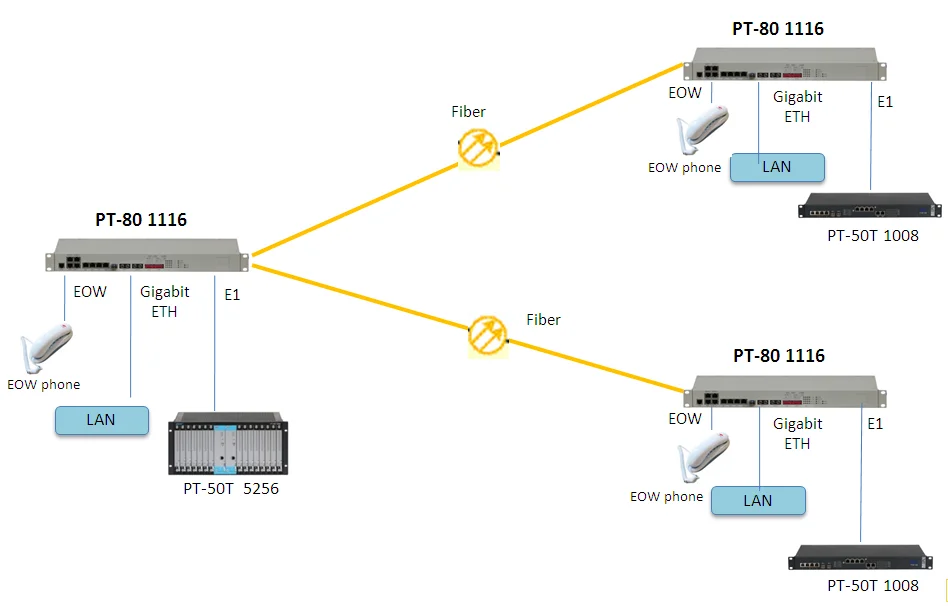

Point to two-point application
