EOS FE/GE OVER STM-16/4/1 MULTIPLEXER

FOB Reference Price:Get Latest Price
US $1,000-8,000 / Cartons | 1 Carton/Cartons (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
PHOTEL
Model Number:
PT-60 3516
Power Supply:
-48VDC/220VAC
NMS:
Support
Warranty:
Two years
LOGO printing:
Support
Size:
3.5U high 19inch
LED Alarm:
Support
STM-1:
up to64 ports
STM-4:
up to19 ports
STM-16:
up to 2 ports
E1:
up to 240 ports
Supply Ability
Supply Ability:
200 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard export package
Port
shanghai or shenzhen
Lead Time :
2 working day



PT-60 3516 MSTP support PCM IPPBX SDH PDH MUX


Brief Introduction
PT-60 MSTP support PCM IPPBX SDH PDH MUX is a new generation intelligent MSTP, it offers a complete solution for traditional ADM services, broadband data service access, aggregation, transmission.


PT-60 3516 is STM-1/4/16 MSTP equipment, it has powerful functions, abundant interfaces, high service capacity, and flexible networking ability, it can flexibly distribute network bandwidth, it can be suitable for service aggregation center node in the transmission network.

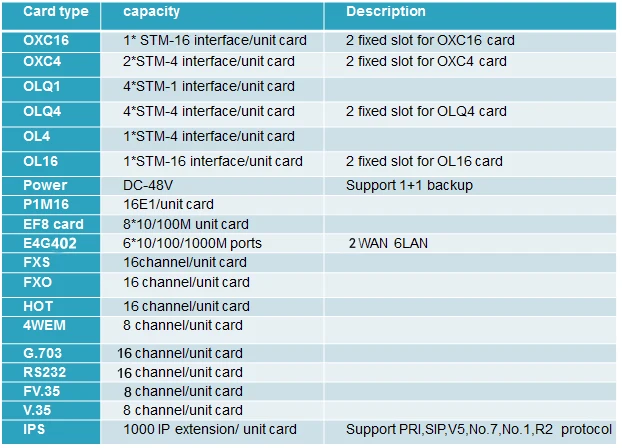

System Access Capability




Main Features







ItemSpecification
Dimensions159mm*484.1mm*276mm(H*W*D)
Number of slots19
Working temperature-10 °C to 50 °C
Working humidity0-90% RH (Non condensing)
Equipment protection

Cross-connection matrix and clock unit 1+1 protection

Uplink and downlink interface card 1+1 protection

Power1+1 protection
Network protection1+1 MSP ,SNCP
Clock port

4 channel external input clock, 4 channel output.

(2 Mbits/s or 2 MHz is optional.120 Ω interface)

Clock working modeLock mode, holdover mode or free-run mode
Power & consumption

DC -48V (-36V to -72V)

Less than 200W when full configuration
System cross connection capacity

192 x 192 VC4 high order cross-connection;

4032 x 4032 VC12 lower order cross-connection;
System Maximum Access Capacity4 x 2.5Gbit/s SDH Optical Port(I-16,S-16.1,L-16.1,L-16.2)

34 x 622Mbit/s SDH Optical Port(I-4,S-4.1,L-4.1,L-4.2)

64 x 155Mbit/s SDH Optical Port(I-1,S-1.1,L-1.1,L-1.2)

90 x GE Electrical Port

120 x FE Electrical Port

240 x E1 Port

240 x FXO Port(PBX Side)

240 x FXS Port(Subscriber Side)

240 x RS232 Port

120 x 4WE&M Port

120 x V35 Port

4 digital Trunk

200 SIP Trunk

200 SIP user

Ethernet Service Processing Capacity

Ethernet service will be encapsulated into N*VC12/VC3/VC4

transparent transmission

Support flow control

Support aggregation

Support LCAS
