2.Mainboard with 4E1, 2*OPT interface,1 ETH NMS,1 RS232 NMS

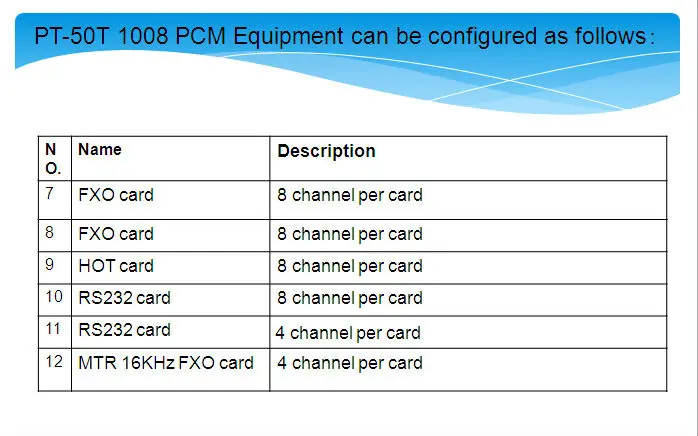

3.It has 5 slots. 1- 4 SLOTS for FXO/FXS/RS232/HOT/4WEM/G.703/MTR card, slot 5 for ETH card

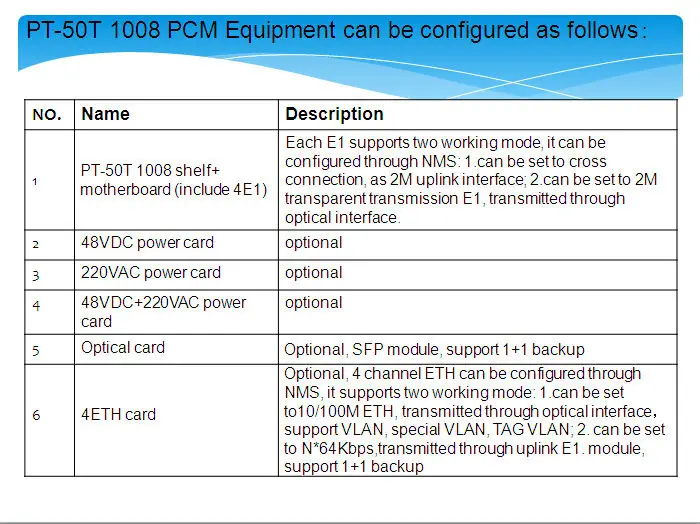

4.4E1 has two working mode : one is as transparent channel ,can be transfer by opt ;another is cross mode.
5.ETH can be transfer by E1 or OPT
6.It support remote firmware upgrate
7.Support GUI WEB NMS
8. It support TDM or IP topology. Only need change firmware by nms.
9.Warranty is two year .
PT-50T 1008 30 pots over fiber or E1 pcm mux ternimal equipment

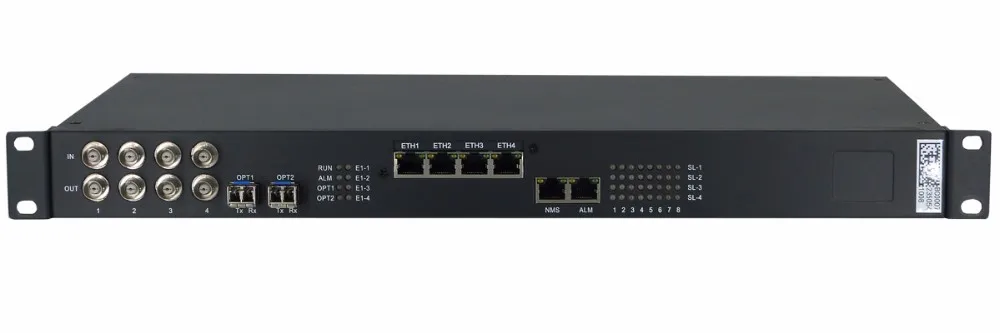

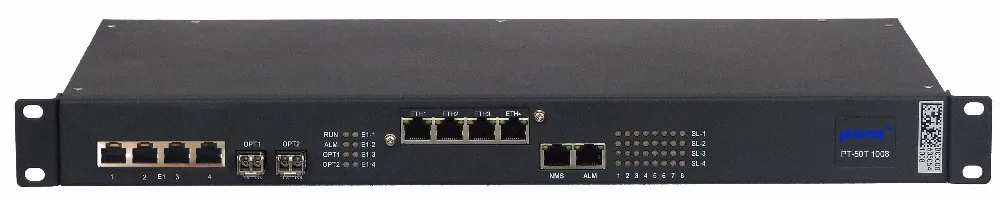

Brief Introduction PT-50T1008 pcm 30 channel voice multiplexer with 4E1 4FE Dual Power Equipment support data and voice equipment is 1U high, 19inch width equipment. It has 4 slots for 64K interface and 1 slot for 4port ETH card. 64K interface slot can insert different types of cards, such as FXS (8ch), FXO (8ch), 4W E&M (4ch) and hotline (8ch), etc. ETH card can be configured according to customer’s requirements, ETH can be transmitted as N*64K in one E1 interface, or can be transmitted as 100M in optical channel.

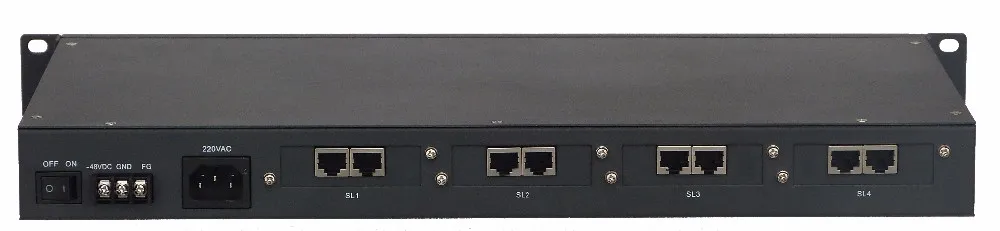

* pcm 30 channel voice multiplexer with 4E1 4FE Dual Power Equipmentcan be configured as 32 voice/data channels, 4 E1 interfaces, 4ETH interfaces, with NMS function; * fiber optic pcm multiplexer support data and voice equipment can be configured as 32 voice/data channels, 4 ETH interfaces, 4 uplink E1 interfaces, with NMS function; * Having 8 E1 cross connection matrix, it can be flexibly configured as D/I equipment; * Can be configured as optical/electrical transmission ports backup access equipment; * It is flexible to configure different types of interfaces, user can select the card’s type and quantity, and can select whether configure ETH card; * 2 NMS ports: ETH NMS port and RS232 port; * the equipment can update the firmware and software remotely; * The power can be AC220V or DC-48V or AC220V + DC-48V.
* data/voice channels can transmit through ethernet,it can instead of TDMOIP equipment.

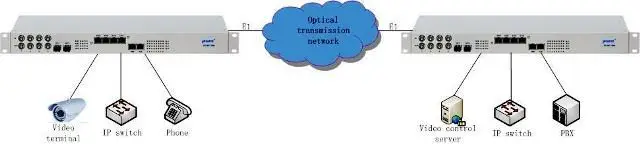

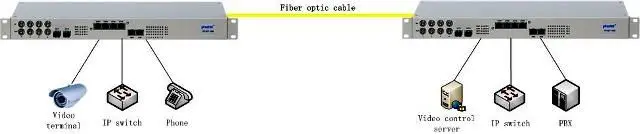

1.Working in the optical transmission mode

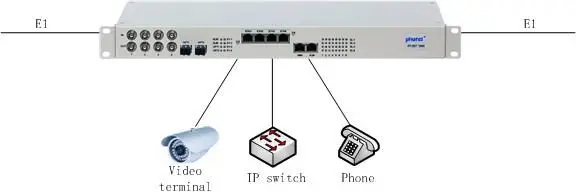

2.Work on the E1 channel
3.Work on the D/I mode
