SDH PDH optical transmission system support STM-1 E1 FXO FXS EM RS232

FOB Reference Price:Get Latest Price
  • 1 - 99 Cartons
    US $35000.00
  • >=100 Cartons
    US $30000.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
PHOTEL
Model Number:
PT-60 3516
Power Supply:
-48VDC or 220VAC
NMS:
Support
Warranty:
Two years
LOGO printing:
Support
LED Alarm:
Support
Size:
3.5U high 19inch
Fiber Type:
SFP LC
Supply Ability
Supply Ability:
100 Carton/Cartons per Month
Packaging & Delivery
Packaging Details
standard package
Port
shanghai
Lead Time :
3~7 working days after payment received
Product Introduction

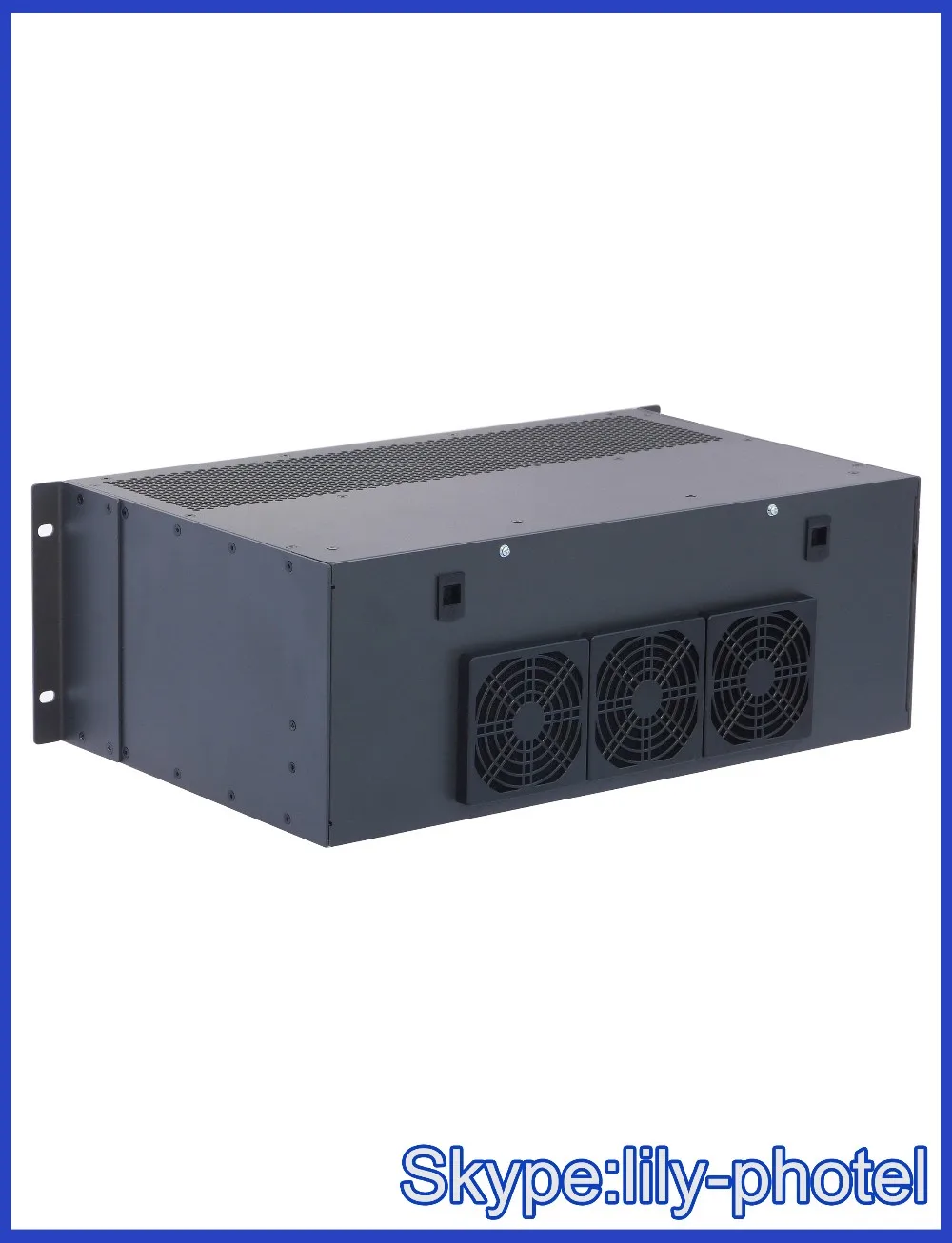

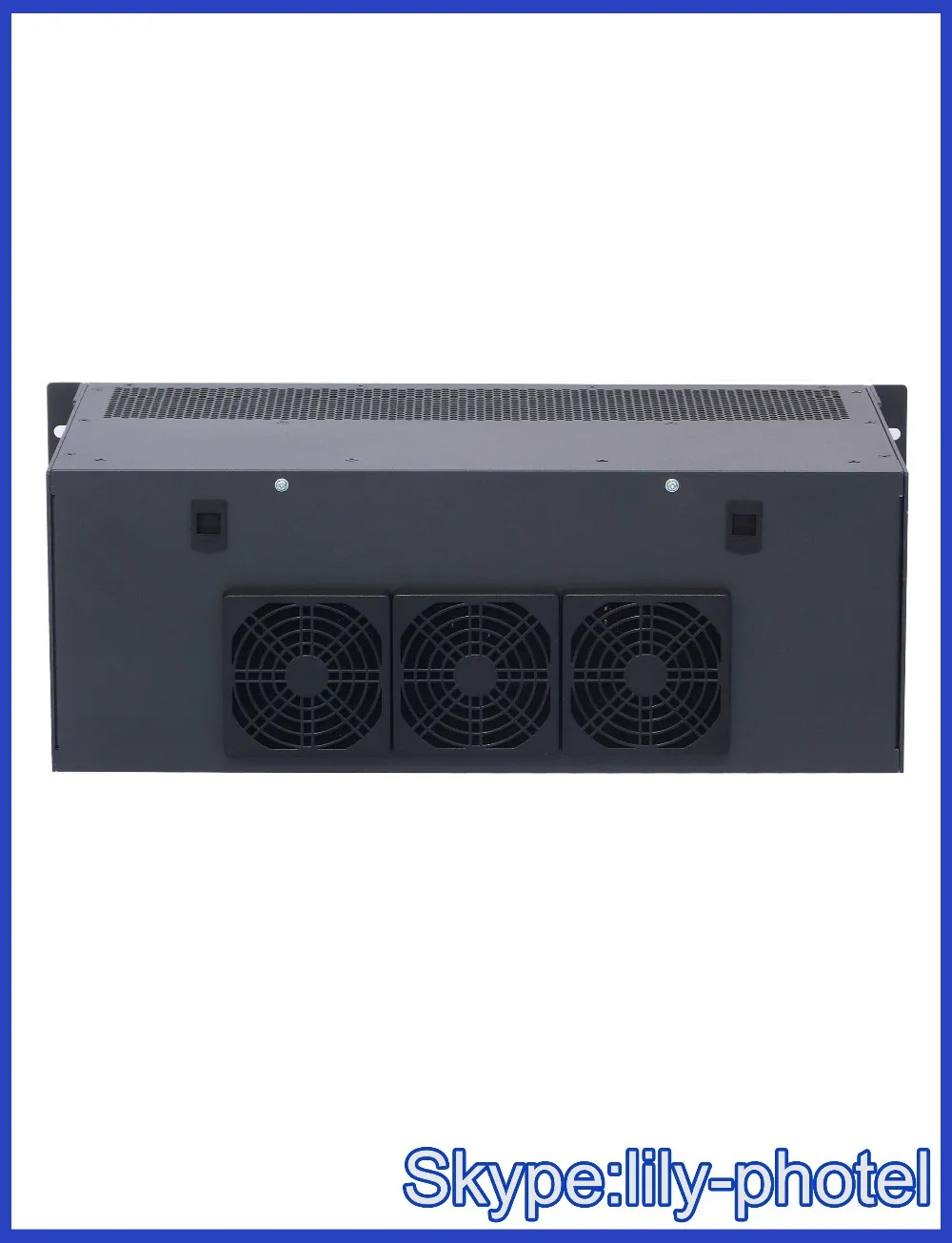

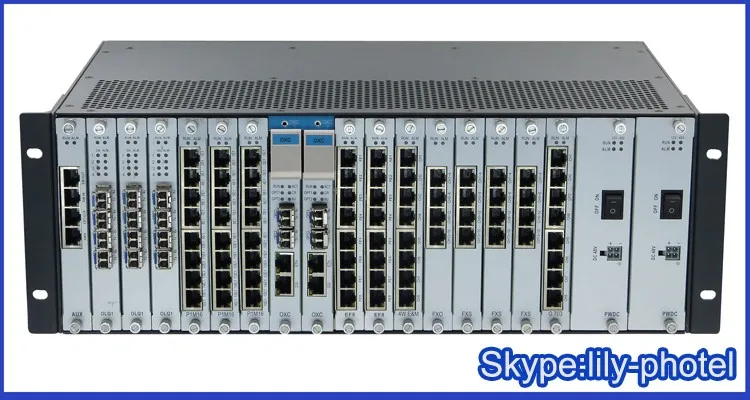

PT-60 3516 is extreme high compact and powerful MSTP equipment, it integrates all kind of transport platforms, such as IP Ethernet, SDH, PDH, DDN, PCM all together; supports all type of digital services, such as digital cross connect (DXC), IPPBX, voice/data drop/insert services all-in-one on a 3.5U height, 19 inches width equipment shelf.

By the advanced state-of-art modular design, PT-60 3516 has the 20Gbps back plane main bus, make it capable to provide the most flexible combination of services to fulfill all kind of modernized communication demand. Its compact chassis provides dual controller, dual power supply and interface card hot swappable capability, make it the most reliable equipment to use for access, even core network.

With its versatile and incredible capability, it can be configured as SDH switch, TDM over IP switch, digital cross connect switch, an IPPBX switch or even all together, and provides cross connection and signal conversion between all these channels.

Product Parameters
Item
Specification
Dimensions
159mm*484.1mm*276mm(H*W*D)
Number of slots
19
Working temperature
-10 °C to 50 °C
Working humidity
0-90% RH (Non condensing)
Equipment protection
Cross-connection matrix and clock unit 1+1 protection
Uplink and downlink interface card 1+1 protection
Power1+1 protection
Network protection
1+1 MSP ,SNCP
Clock port
4 channel external input clock, 4 channel output.
(2 Mbits/s or 2 MHz is optional.120 Ω interface)
Clock working mode
Lock mode, holdover mode or free-run mode
Power & consumption
DC -48V (-36V to -72V)
Less than 200W when full configuration
System cross connection capacity
192 x 192 VC4 high order cross-connection;
4032 x 4032 VC12 lower order cross-connection;
System Maximum Access Capacity
4 x 2.5Gbit/s SDH Optical Port(I-16,S-16.1,L-16.1,L-16.2)
34 x 622Mbit/s SDH Optical Port(I-4,S-4.1,L-4.1,L-4.2)
64 x 155Mbit/s SDH Optical Port(I-1,S-1.1,L-1.1,L-1.2)
90 x GE Electrical Port
120 x FE Electrical Port
240 x E1 Port
240 x FXO Port(PBX Side)
240 x FXS Port(Subscriber Side)
240 x RS232 Port
120 x 4WE&M Port
120 x V35 Port
4 digital Trunk
200 SIP Trunk
200 SIP user
Ethernet Service Processing Capacity
Ethernet service will be encapsulated into N*VC12/VC3/VC4
transparent transmission
Support flow control
Support aggregation
Support LCAS
