Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: PHOTEL
  • Model Number: PT-60 1001
  • Power Supply: -48VDC/220VAC
  • NMS: Support
  • Warranty: Two years
  • LOGO printing: Support
  • Size: 1U high 19inch
  • LED Alarm: Support
  • STM-1: up to2 ports
  • STM-4: up to2 ports
  • networking: TM or ADM
  • 1 +1 redundancy: support

Packaging & Delivery

Packaging Details according to customer's requirement
Delivery Time Shipped in 10 days after payment
Product Description

PT-60 1001 is a new generation, enhanced SDH / MSTP device. It is a carrier-class, high compact platform and aimed for metro and SDH networks access. It can work as Add-Drop Multiplexer (ADM), Termination Multiplexer (TM), and also as a Gigabit Ethernet to SDH converter.

PT-60 1001 with extremely strong cross-connection ability, it supports 64K up to low / high order of SDH cross-connection. Not only the STM-1 / STM-4 optical port can work as the network uplink, it can also configure the n x E1 ports as the network uplink simultaneously. The co-working optic and E1 network uplinks provides customer a very flexibly networking configuration.

Any combination of AC, DC dual power is supported, and equipped on a 1U height, 19 inches width rack mountable casing. Such powerful cross connect switch, flexible networking, link protection and redundancy power supply, various voice / data services which make PT-60 1001 the most function rich, reliable and cost effective solution for seamlessly migration of the E1 TDM network onto the SDH network.

Fetures

1)19” rack mountable, 1U height compact size;
2)System supports point-to-point, chain and ring network applications;
3)Gigabit Ethernet to STM-1 conversion, data rate up to 63 x VC12;
4)STM1 / STM-4 and n x E1 co-working simultaneously as network uplinks;
5)System supports 2 x STM-1, or 2 x STM-4 optical ports as ring protection;
6)Ethernet supports 4 x GE electrical ports or 3 x GE electrical ports plus 1 x GE optical port;
7)Order-wire channel for point-to-point and point-to-multipoint voice communication;
8)Sophisticate configurable system protection with SNCP network protection and 1+1 interface protection;
9)In-band management channel for remote control and system management;
10)Two expansion slots for E1 or various data or voice modules;
11)Alarm relay is provided for external alarm facility connection;
12)Remote firmware and software upgrade is available;
13)Redundancy power supply is supported with any combination of the power supply unit.

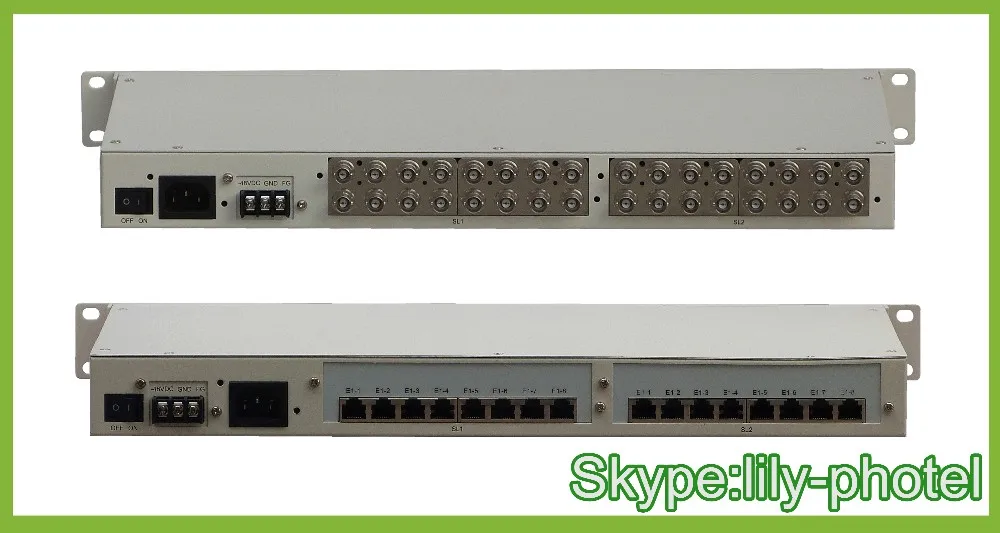

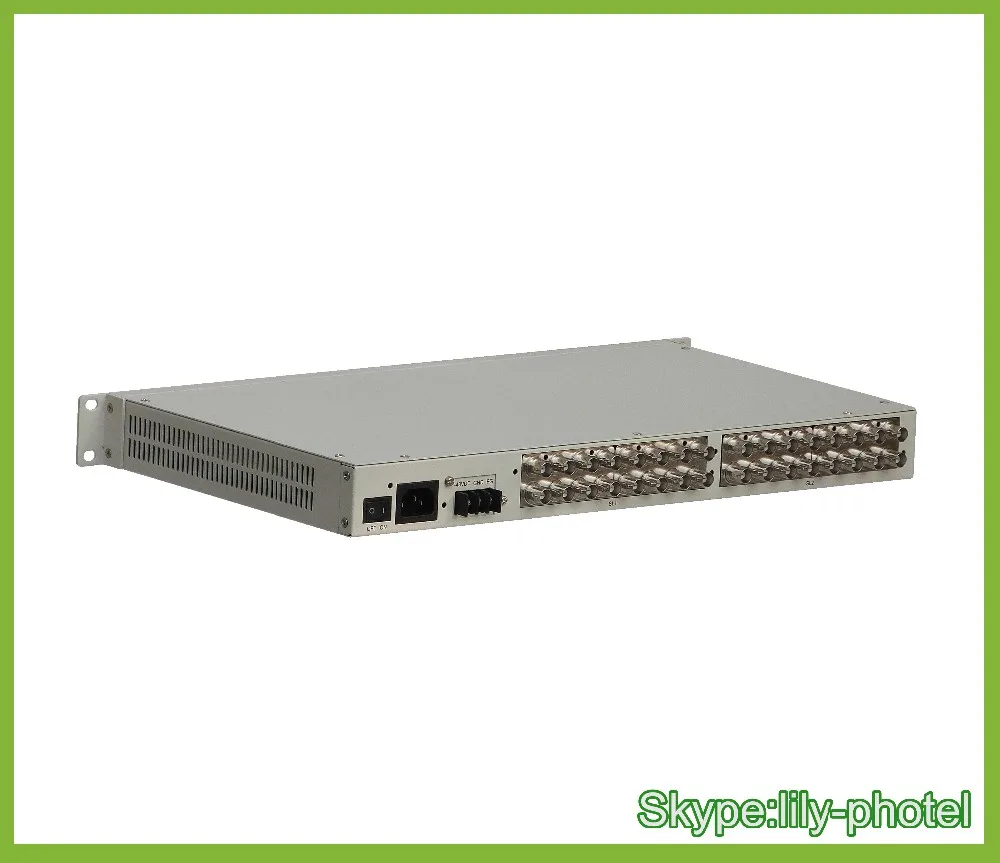

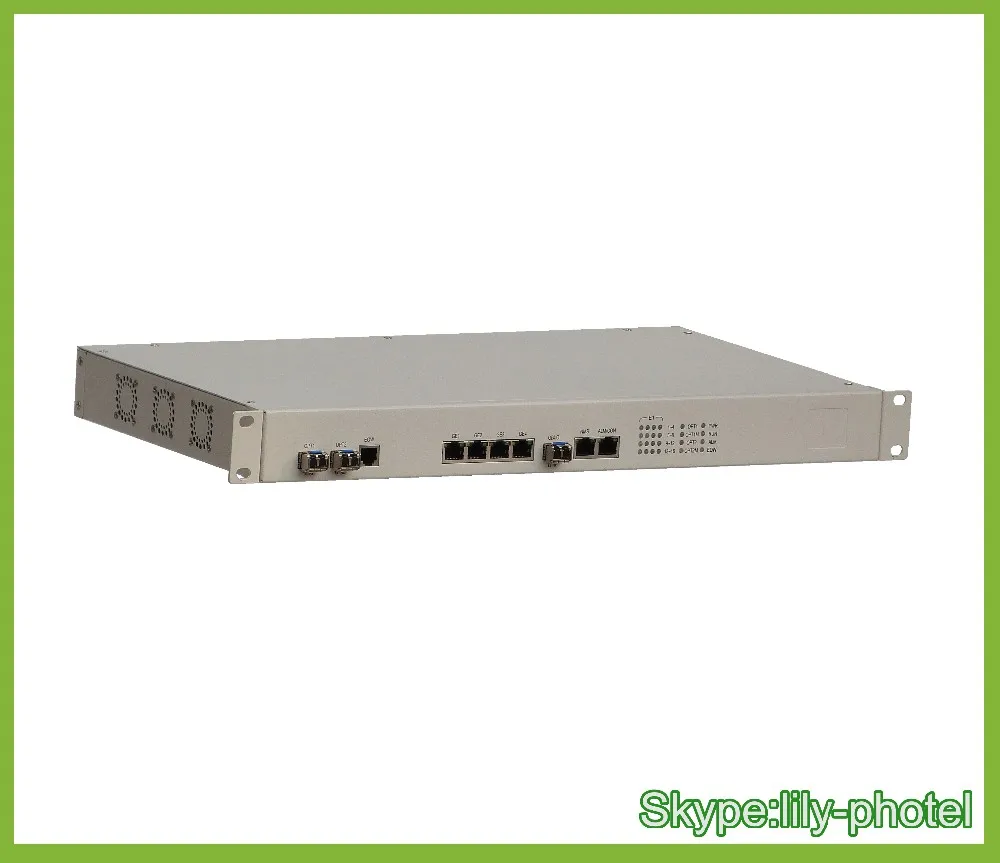

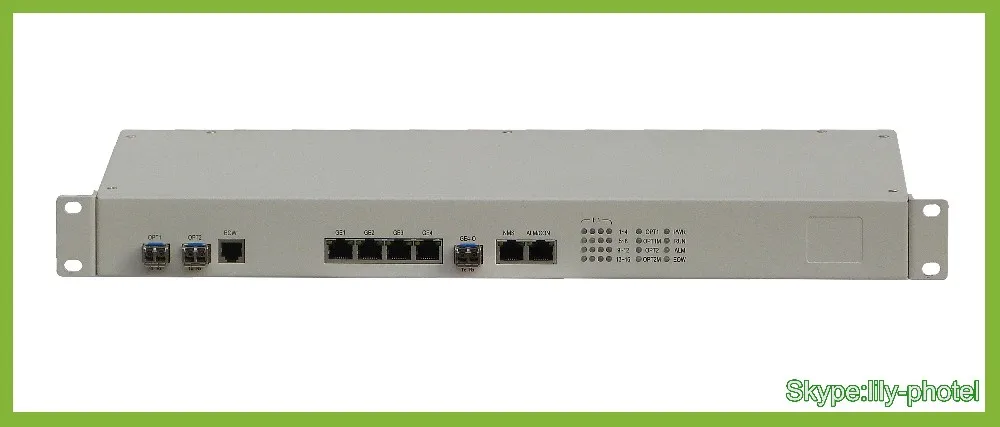

Products Show
Applications

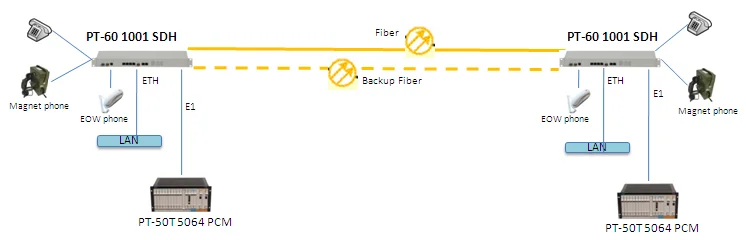

Point to point application

Point to multi-point application
