MSTP support SDH/MSTP Multi-Service Node equipment

FOB Reference Price:Get Latest Price
US $1,000-8,000 / Cartons | 1 Carton/Cartons (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
PHOTEL
Model Number:
PT-60 3516
NMS:
Support
LOGO:
Support
LED Alarm:
Support
Power Supply:
-48VDC/220vVAC
Warranty:
Two years
Slze:
3.5u high 19inch
Stm-1:
up to64 ports
Stm-4:
up to19 ports
Stm-16:
up to2 ports
E1:
up to240 ports
Supply Ability
Supply Ability:
20 Carton/Cartons per Month
Packaging & Delivery
Packaging Details
according to customer's requirement
Port
shanghai or shenzhen
Lead Time :
2-5 working day
Product Description

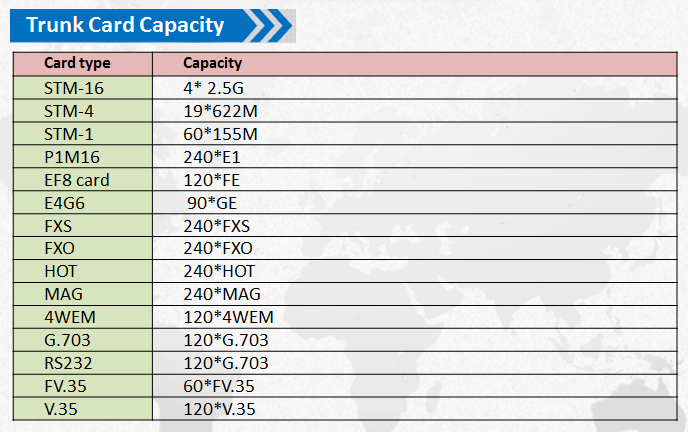

1.Support STM-1,STM-4,STM-16
2.one OXC card support 2* optical interface,it support 1+1 backup
3. one E1 card support 16E1
4. one FE card support 8*10/100M;
5.3.5U high 19inch width
6.It support FXO FXS 4WEM G.703 HOT MAG and so on cards.
7.support AC+DC,AC or DC



Brief Introduction

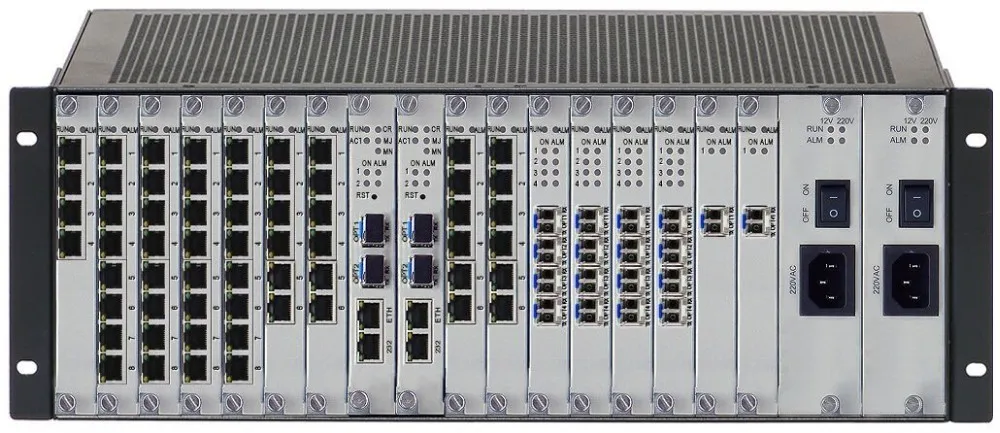

          PT-60 3516 is extremely high compact design MSTP equipment, integrated with all kind of digital services onto a 3.5U height and 19 inches width equipment shelf. It combines TDMOIP, SDH, PCM (64K), DXC, IPPBX services all-in-one. It can be deployed between the backbone network and access network, provides various services over high-capacity transmission media.


            PT-60 3516 provides SDH port as STM-16, STM-4 and STM-1. It also provides various EOS, E1, FV35, ISDN, G.703, V24/V28 and RS232 digital data cards, as well as different kinds of FXS, FXO, 4WE&M and Hotline voice interface card. The IPS card supports the PBX and IPPBX function and it can support SS7, PRI, R2, V5.2 and SIP all kinds of signaling conversion. The TIP card supports 7200 time slots digital data and transport over the Ethernet network.

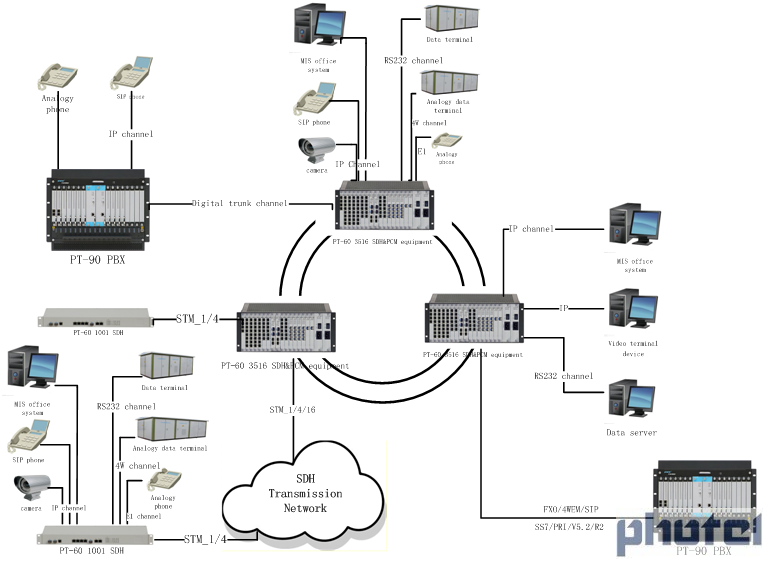

APPlication
Company Information

A pioneer telecom equipment manufacturer in Nanjing city, China;
A major R&D company with more than two decade telecom product design experience;
Provides OEM and ODM services;
Provides feature rich and highly cost effective telecom equipment;
Includes PCM, SDH/MSTP, PBX/IPPBX, TDM OVER IP, PDH, HDSL, DXC , Converter
