Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: Photel
  • Model Number: PT-50 1008
  • Size: 1U high,19 inch
  • Transmission medium: Fiber/E1/IP
  • Power Supply: AC,DC,AC+DC
  • E1 ports number: 4
  • ETH ports number:: 4
  • Fiber mode: single mode, multimode
  • Maximum FXO/FXS ports: 30
  • 2/4 wire interface Impedance: balance 600Ω
  • E1 Impedance: 120 Ohm and 75 Ohm
  • NMS: Support

Packaging & Delivery

Packaging Details Standard export package
Delivery Time 3 to 7 working days after payment confirmed

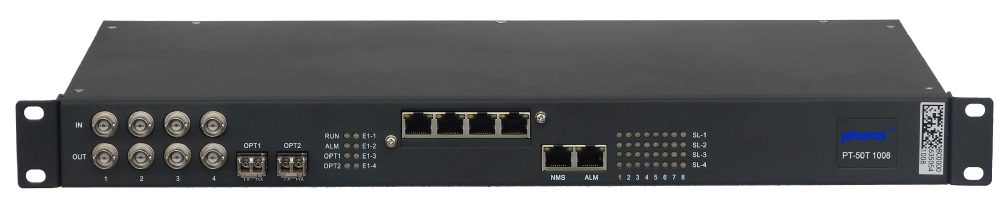

PT-50T 1008 PCM Equipment





Brief Introduction


      PT-50T 1008 PCM equipment is 1U high, 19inch width equipment. It has 4 slots for 64K interface and 1 slot for 4port ETH card. 64K interface slot can insert different types of cards, such as FXS (8ch), FXO (8ch), 4W E&M (4ch) and hotline (8ch), etc. ETH card can be configured according to customer’s requirements, ETH can be transmitted as N*64K in one E1 interface, or can be transmitted as 100M in optical channel. There are 4 fixed E1 in the motherboard. Each E1 interface can be used as uplink interface to undertake voice service, etc. and it also can be used as the transparent transmission interface. The equipment has 2 SFP optical module slots, which can realize 1+1 optical transmission channel. It has perfect NMS function, and its NMS protocol is compliant with photel’s NMS protocol.



Main Features



Can be configured as 32 voice/data channels, 4 E1 interfaces, 4ETH interfaces, with NMS function;

Can be configured as 32 voice/data channels, 4 ETH interfaces, 4 uplink E1 interfaces, with NMS function;

Having 8 E1 cross connection matrix, it can be flexibly configured as D/I equipment;

Can be configured as optical/electrical transmission ports backup access equipment;

It is flexible to configure different types of interfaces, user can select the card’s type and quantity, and can select whether configure ETH card;

NMS ports is ETH;

the equipment can update the firmware and software remotely;

The power can be AC220V or DC-48V or AC220V + DC-48V.



Technical Specification



Item

Description

E1 interface

Bit rate: 2048Kbps ± 50ppm

Code type: HDB3 code,accord with G.703 standard
Input impedance: 7 5ohm(unbalanced interface),120ohm(balanced interface)optional
Frame structure: accord with G.704, G.706
Compression law: accord with G.711
level: ±2.37V ±10%

optical interface

Bit rate: 150Mb/s ± 50ppm
Output optical power: ≥-15dBm
Receiving sensitivity: ≤-35dBm
Optical wavelength: 1310nm/1550nm
Optical interface connecter: FC

ETH interface (10/100M UTP)

Bit rate: 10/100 Mbps half/full duplex adaptive

Standard: Compatible with IEEE802.3, IEEE802.1Q (VLAN)
Connector: RJ45

FXO/FXS interface

Audio frequency range:300Hz ~ 3400Hz

Compression ratio:ITU G.711 A-Law

Loop current:20mA

Impedance:200Ω+560Ω//0.1μF

Connector: RJ45

EM2/4 interface

Audio frequency range:300Hz ~ 3400Hz

Return loss:>18dB

Compression ratio:ITU G.711 A-Law

Impedance:600Ω balanced

Connector: RJ45

V.24 interface

Transmission rate:asynchronous≤9600bps and asynchronous≤64kbps

Comply with CCITT V.28 protocol

Connector: RJ45

Mechanical Dimension

Dimension: 440mm(Width)×270 mm(Height)× 60mm(Depth)

Net weight: 4kg

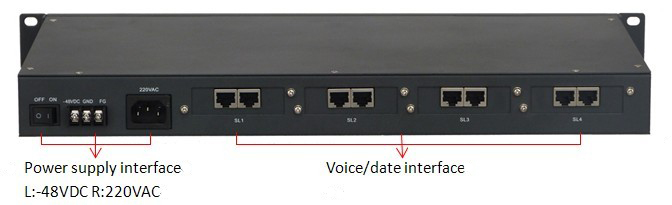

Power Supply

Input voltage: Standard value -48VDC or 220VAC

Voltage range: -36VDC~-72VDC,176VAC~264VAC
Power consumption: <10W

Operation Environment

Working temperature: -10°C ~ +50°C

Working humidity: <=90%(no condensation)



Typical applications

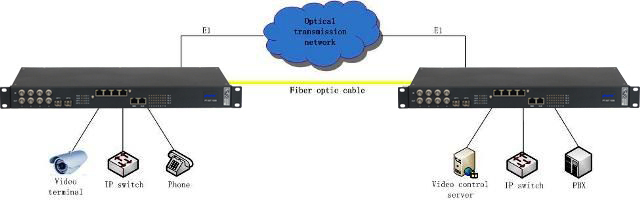

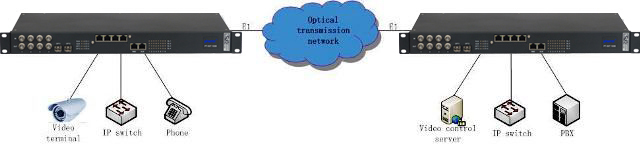

1.Working in the optical transmission mode

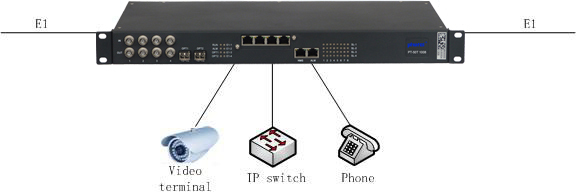

2.Work on the E1 channel





3.Work on the D/I mode

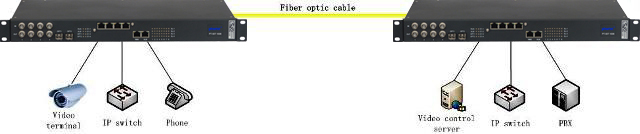

4.Work on the light and electric dual backup mode









Company Information

We have been the professional manufactuer of PDH, PCM ,SDH,PBX etc.communication equipment for more than 15 years.

1.We provide OEM and ODM service.

2.We provide peoducts for military

3.We acceppt  customer Oriented Equipment

4. Photel products enjoy high quality and competitive price!

Welcome to  Photel

PCB  soldering process



  Exhibition

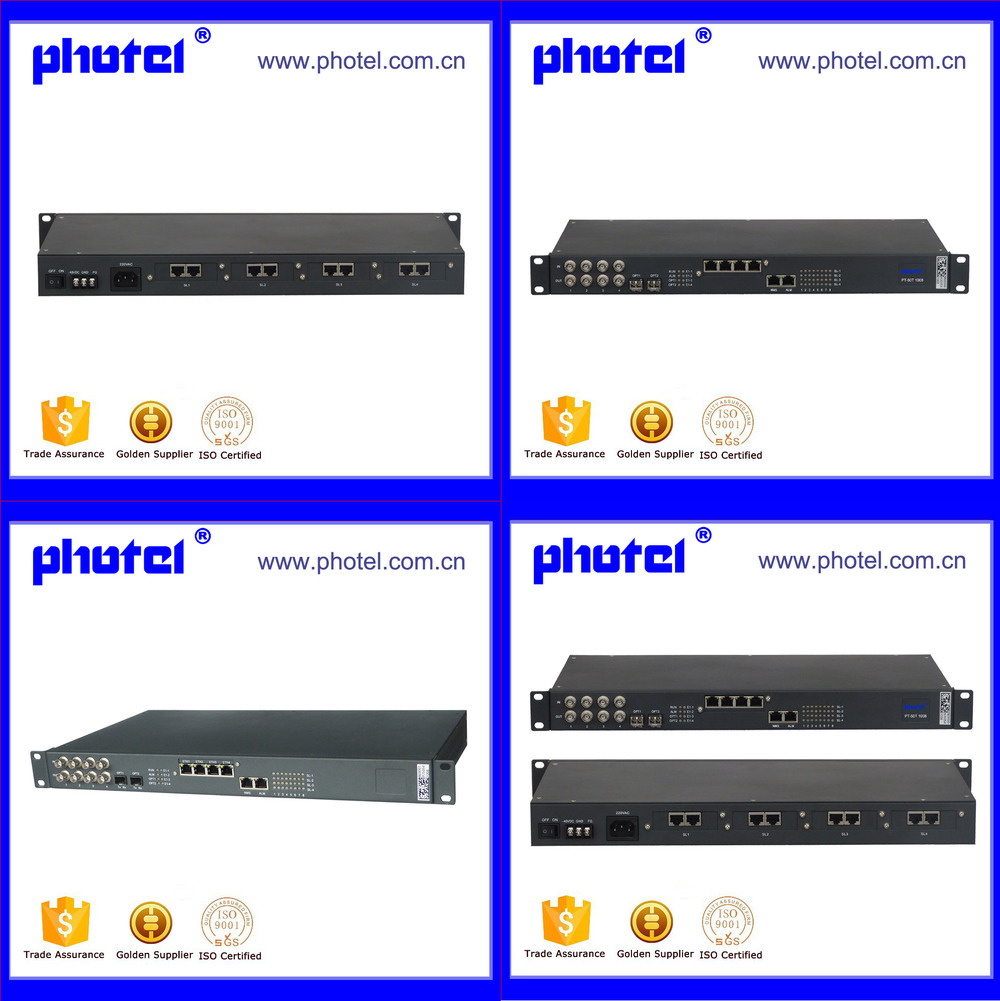

Products show
